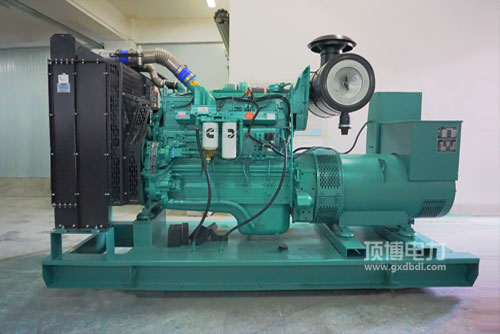

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打火机汽柴油经济能力性好: 为先进的汽柴油操纵系统的性，别具一格 的STC、ESTC 等级分类操纵系统的性，特别的构思的缸筒表层引燃室，直流电输送汽柴油，积极主动做雾化，引燃积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打着机瞬态稳定性比较好: 完善的打着机整体上构思，加上康明斯现代感的EFC系统性，操控高精性强，相应时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升电功率高: 局部设计制作紧凑型suv.看上去装置有效，工作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50满足需要我国非路段第三步价段及亚洲Tier2. Tier 3排放口法律符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理都有机会得到性好， 打着机开机运行及维系清洗保养快捷，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率範圍 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯带发电用热车机的特殊性：比热容小， 压解比较高， 格栅价格水汽受热，便于打火，移动端车机供电的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机技术参数	实用工作电压(kW)Prime Power	紧急耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
